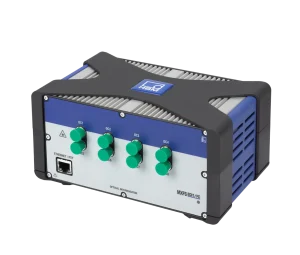

MXFS static 8SC w/catman

QuantumX MXFS: Integrating Optical and Electrical Measurements into One Reliable System

QuantumX MXFS makes optical measurements easy, flexible and competitive – according to your needs. It provides you with all the optical benefits of the BraggMETER technology: suitable for measuring large sensing networks composed of various types of sensors, high strain and high resistance to fatigue, reliable and high-quality long-distance measurements, reduced cost and many more.

With the MXFS BraggMETER modules, tens of Fiber Bragg Grating sensors can be connected in series to each of the eight optical connectors – with parallel acquisition. The new fiber optic sensing device offers, therefore, hundreds of  channels per module with simultaneous acquisition. Measurement capacity can effortlessly multiplied by synchronizing multiple devices.
Your benefits are obvious: a cost reduction not only per measuring point but also for overall ownership.

The MXFS SI comes with two operating modes can be selected by the user:

• Normal speed mode, with 1S/s acquisition rate, and
• High speed mode, with 10S/s acquisition rate

QuantumX MXFS allows for the integration of an impressive number of precise and stable optical fiber measurements. FBG sensors are easy to install, electromagnetically safe and can also be used in highly explosive atmospheres. Measurement of strain, temperature, acceleration, load and tilt are all possible. With the integration of MXFS, the accuracy and the possible range of applications for your measurements increase.

Easy to integrate

• Scalable module of the reliable QuantumX DAQ system
• Simply ‘Plug and Measure’
• Endless intelligent combinations for data acquisition

MXFS offers all the benefits of the QuantumX series such as easy handling and compatibility with catman software.

Flexible and efficient

• Single point measurements of large sensor networks
• Smart Peak Detection (SPD) at dynamic acquisition rate
• Two selectable acquisition modes (100 S/s / 2000 S/s)

MXFS offers a high sensor density and multifunctional use.

Resistant and stable

• Long-distance measurements, also in harsh environments
• Immunity to EM and RF interferences
• High strain and high resistance to fatigue without any zero drift

Accurate and precise measurements with FBG technology.
