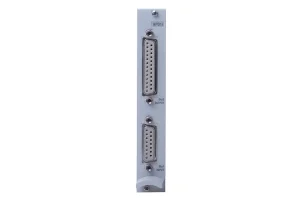

Connection board AP01I with D-sub socket

Name: Connection board AP01I with D-sub socket
Brand: Anwit
SKU: 4567
Price: 1.00 UAH
Availability: PreOrder

Universal connection board
TEDS Transducer identification
Transducer connection: D-sub socket 15-pin
Connection for output signal: D-sub socket 25-pin

Specification

Accessories

Number of inputs	1
Input	Standardized voltage (+/- 10V), Standardized current (4-20mA), Strain gauge full/half bridge, Inductive bridge, Resistance (PTC, NTC, KTY), Piezo resistive bridge, Digital encoder
Output	Voltage (+/- 10V)
Interface	TCP/IP
Accuracy class	0.03
Degree of protection	IP20
Sample rate [S/s]	19.2 kHz
Real-time capabilities	None

Product Code	Description
1-ML30B	CF amplifier for transducers, 600 Hz
1-ML10B	DC amplifier for strain gauges
2-9278.0293	Plug D-sub with cap, 25 pole
1-ML60B	Counter unit
3-3312.0182	Plug D-sub with cap, 15 pole
1-ML38B	Precision bridge amplifier for MGC
1-ML55B	CF amplifier for bridges, 4.8 kHz
1-ML01B	DC amplifier, electrical input

Downloads

MGCplus - Data Sheet (B00554)
