Charge accelerometer

Dytran 5335

Piezoelectric CCLD (IEPE) accelerometer for high temperature industrial vibration monitoring and high temperature turbine vibration measurements.

Weight: 400 g
Sensitivity: 11 mV/g
Frequency range: 4.8 Hz to 1.4 kHz
Temperature range: -50 °C to 482 °C
Resonance frequency: 35 kHz

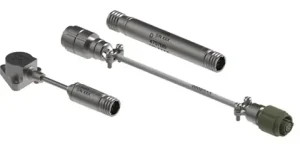

Dytran 5335 - high temperature hybrid vibration monitoring system.

Overview

Dytran model 5335 is a high temperature hybrid vibration monitoring system. This uniaxial piezoelectric CCLD (IEPE) sensor consists of a paired differential charge mode accelerometer and an in-line miniature differential charge amplifier, permanently joined together as a single unit with an interconnecting integral hardline cable. It operates from a constant current 2-wire (IEPE) power unit.

Designed for demanding conditions, it’s used in high temperature industrial vibration monitoring and high temperature turbine vibration measurements.

The Dytran 5335 delivers a sensitivity of 11 mV/g across a frequency range of 4.8 Hz to 1.4 kHz. It operates effectively in temperatures ranging from -50 °C to 482 °C and features center bolt mounting for secure installation.
