Charge accelerometer

3055C

Single axis piezoelectric charge mode accelerometer.

Purpose: Cost-effective general purpose vibration monitoring.
Temperature Range: Up to +375°F (+190°C).
Sensitivity: 15 pC/g.
Housing: Lightweight, robust, hermetically sealed titanium.
Connections: 10-32 radial connector and 10-32 mounting hole.
Weight: 10 grams.
Interference Protection: Base isolated to avoid EMI/ground loop interference.

Overview

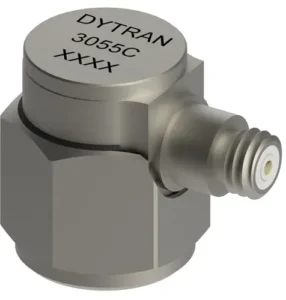

The Dytran model 3055C is a single axis piezoelectric charge mode accelerometer with wide bandwidth, designed to provide cost-effective general purpose vibration monitoring in temperatures up to +375°F (+190°C).

Offered with a sensitivity of 15 pC/g, model 3055C features a lightweight, robust, hermetically sealed titanium housing with a 10-32 radial connector and 10-32 mounting hole, allowing units to be utilized in a variety of application environments. The Dytran model 3055C weighs just 10 grams and is base isolated to avoid EMI/ground loop interference.

Download Product Data Sheets

3055C Vibration Transducer
