CCLD (IEPE) accelerometer

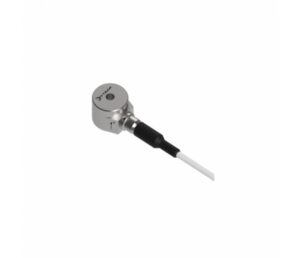

3168D

Compact ring-style hermetically sealed uniaxial IEPE accelerometer for airborne vibration diagnostics and HUMS applications.

Sensitivity: 10 mV/g (±5%)
Measurement range: 5000 m/s²
Frequency range: 1 Hz to 10 kHz
Temperature range: –55 °C to 125 °C
Weight: 42 g

Overview

Downloads

Dytran model 3168D is a ring-style, hermetically sealed uniaxial IEPE accelerometer designed for high-frequency vibration measurements in aerospace environments. It is widely used in aircraft and airframe diagnostics, Health and Usage Monitoring Systems (HUMS), Rotor Track and Balance (RTB), and transmission vibration analysis.

With a sensitivity of 10 mV/g and a measurement range of 5000 m/s², the 3168D is optimized for detecting dynamic events in rotating components and structural assemblies.

The 3168D is a trusted solution for flight test instrumentation, vibration trending, and predictive maintenance in aerospace systems.
