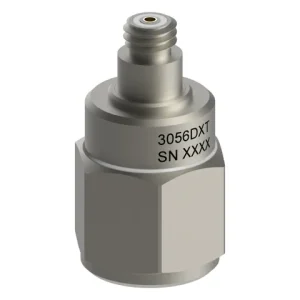

CCLD (IEPE) accelerometer

3056D

Piezoelectric uniaxial IEPE accelerometer for modal analysis, vibration control, and general-purpose dynamic monitoring.

Weight: 10 g
Sensitivity: 5 mV/g / 10 mV/g / 50 mV/g / 500 mV/g
Frequency range: 1 Hz to 10 kHz
Temperature range: -55 °C to 160 °C
Resonance frequency: 36 kHz

Overview

Dytran 3056D is a cost-effective piezoelectric uniaxial IEPE accelerometer designed for modal analysis, vibration control, and a wide range of general-purpose vibration testing tasks.

The sensor has a weight of 10 g and is installed using stud mounting, and available in four sensitivity options — 5 mV/g, 10 mV/g, 50 mV/g, and 500 mV/g. It operates within a frequency range of 1 Hz to 10 kHz, with a resonance frequency of 36 kHz.
