CCLD (IEPE) accelerometer

3055D

Piezoelectric uniaxial IEPE accelerometer for modal analysis, vibration control, and general-purpose dynamic measurements.

Weight: 10 g
Sensitivity: 10 mV/g / 100 mV/g / 500 mV/g
Frequency range: 1 Hz to 5 kHz
Temperature range: -55 °C to 160 °C
Resonance frequency: 30 kHz

Overview

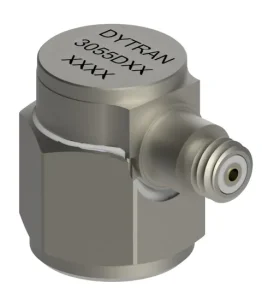

Dytran 3055D is a wide-bandwidth piezoelectric uniaxial IEPE accelerometer designed for modal analysis, vibration control systems, and general-purpose vibration monitoring.

It has a weight of 10 g and supports multiple sensitivity levels—10 mV/g, 100 mV/g, and 500 mV/g — accommodating various dynamic conditions across a frequency range of 1 Hz to 5 kHz. The 3055D operates effectively within a temperature span from -55 °C to 160 °C, making it ideal for diverse industrial and laboratory applications.
