CCLD (IEPE) accelerometer

3032M

Miniature piezoelectric uniaxial IEPE accelerometer for ESS, HALT/HASS, and precision vibration testing.



  • Weight: 1.5 g
  • Sensitivity: 10 mV/g
  • Frequency range: 1 Hz to 10 kHz
  • Temperature range: -50 °C to 160 °C
  • Resonance frequency: 40 kHz

Overview

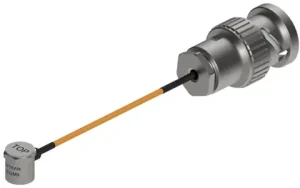

Dytran 3032M is a miniature piezoelectric uniaxial IEPE accelerometer tailored for applications such as Environmental Stress Screening (ESS), HALT/HASS procedures, product response evaluations, and vibration control tasks.

It has a weight of 1.5 g and is installed using adhesive mounting, allowing secure placement in space-constrained test configurations. The sensor provides a sensitivity of 10 mV/g across a frequency range from 1 Hz to 10 kHz. Its resonance frequency of 40 kHz ensures stable performance during high-frequency testing. Designed to operate within a temperature span from -50 °C to 160 °C, the 3032M is well-suited for demanding environments requiring minimal mass and reliable measurement fidelity

Download Product Data Sheets
