3027B | Anwit
3027B | Anwit
CCLD (IEPE) accelerometer

3027B

Piezoelectric uniaxial IEPE reference accelerometer for calibration and dynamic sensor comparison.



  • Weight: 100 g
  • Sensitivity: 10 mV/g
  • Frequency range: 0.5 Hz to 10 kHz
  • Temperature range: -50 °C to 93 °C
  • Resonance frequency: 40 kHz

Overview
Downloads

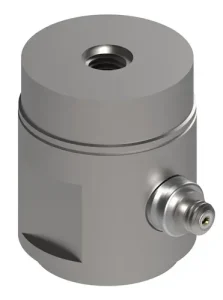

Dytran 3027B is a piezoelectric uniaxial IEPE reference accelerometer specifically designed for use in calibration systems and comparative testing of unknown sensors. It serves as a double-ended standard for evaluating acceleration, velocity, and displacement sensor performance in back-to-back setups.

The sensor has a weight of 100 g and is mounted using a stud attachment, ensuring stable and repeatable calibration alignment. With a sensitivity of 10 mV/g and a usable frequency range from 0.5 Hz to 10 kHz, it accommodates a broad range of dynamic testing needs. Its resonance frequency of 40 kHz supports high-frequency fidelity, making it ideal for metrological accuracy in sensor standardization. The operating temperature spans from -50 °C to 93 °C, suitable for laboratory and controlled industrial environments.

Download Product Data Sheets
