CCLD (IEPE) accelerometer

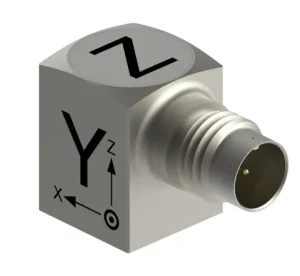

3023BDytran 3023B is a miniature piezoelectric triaxial IEPE accelerometer developed for environmental stress screening (ESS), HALT/HASS procedures, and general-purpose vibration testing. It has a weight of 3 to 4 g, depending on configuration, and installs using adhesive mounting for flexible placement in compact assemblies. This sensor is available with three sensitivity levels—1 mV/g, 5 mV/g, and 10 mV/g—supporting varied dynamic ranges across a frequency band of 2.43 Hz to 4 kHz. Its resonance frequency reaches 25 kHz, providing reliable high-frequency response essential in rapid-cycle test environments. Designed to operate from -50 °C to 160 °C, the 3023B ensures stable measurements under challenging thermal conditions.

Miniature piezoelectric triaxial IEPE accelerometer for ESS, HALT/HASS, and general-purpose vibration measurements.

Weight: 3 g / 4 g
Sensitivity: 1 mV/g / 5 mV/g / 10 mV/g
Frequency range: 2.43 Hz to 4 kHz
Temperature range: -50 °C to 160 °C
Resonance frequency: 25 kHz

Overview

Dytran 3023B is a miniature piezoelectric triaxial IEPE accelerometer developed for environmental stress screening (ESS), HALT/HASS procedures, and general-purpose vibration testing. It has a weight of 3 to 4 g, depending on configuration, and installs using adhesive mounting for flexible placement in compact assemblies.

This sensor is available with three sensitivity levels—1 mV/g, 5 mV/g, and 10 mV/g—supporting varied dynamic ranges across a frequency band of 2.43 Hz to 4 kHz. Its resonance frequency reaches 25 kHz, providing reliable high-frequency response essential in rapid-cycle test environments. Designed to operate from -50 °C to 160 °C, the 3023B ensures stable measurements under challenging thermal conditions.
