CCLD (IEPE) accelerometer

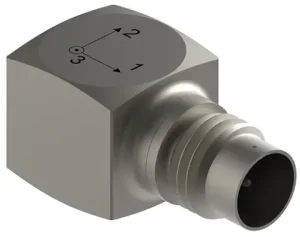

3023A

Miniature piezoelectric triaxial IEPE accelerometer for ESS, HALT/HASS, and general-purpose vibration testing.

Weight: 3 g / 4 g
Sensitivity: 5 mV/g / 10 mV/g
Frequency range: 1.5 Hz to 10 kHz
Temperature range: -50 °C to 160 °C
Resonance frequency: 40 kHz

Overview

Dytran 3023A is a compact piezoelectric triaxial IEPE accelerometer designed for environmental stress screening (ESS), HALT/HASS protocols, and general-purpose vibration testing.

It has a weight of 3 to 4 g depending on configuration and is compatible with stud or adhesive mounting methods for versatile installation in limited spaces. The sensor is available in multiple sensitivity options—5 mV/g and 10 mV/g—operating across a frequency range of 1.5 Hz to 10 kHz. Its resonance frequency reaches 40 kHz, delivering accurate high-frequency response. With a wide operating temperature range from -50 °C to 160 °C, the 3023A is ideal for demanding test setups and accelerated life testing.
