U2A

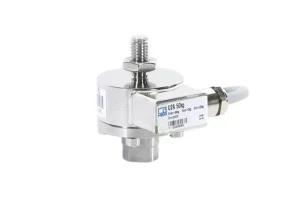

U2A Legal-For-Trade Tension/Compression Load Cell

The U2A load cell has proven to be useful in thousands of applications and is available with maximum capacities ranging between 50 kg and 20 t. The variants with 500 kg, 1 t, 2 t, and 5 t maximum capacity meet the D1 accuracy class. Additionally, the U2A load cell is available with other maximum capacities and accuracy classes (0.1 and 0.2).

Compliance with the D1 accuracy class allows utilization in Class III scales with a resolution of up to 1,000 divisions in compliance with OIML R60. These can, for example, include suspended tanks, conveyor or batching scales, or hybrid scales. Another major field of application is found in gravimetric level measurement.

• Accuracy classes: D1, 0.1 %, 0.2 % (depending on the maximum capacity)
• Maximum capacity: 50 kg / 100 kg / 200 kg / 500 kg / 1 t/ 2 t / 5 t / 10 t /20 t
• Principle of measurement: Strain-gauge full bridge in 6-wire configuration
• Version: Tension/compression load; preferred direction: Tension
• Degree of protection: IP67

Compact and robust

• Flat and space-saving design: starting from 50 mm diameter
• Stainless steel
• Protected against dust and water in compliance with IP67
• Broad operating temperature, ranging from –30 °C to optionally +120 °C
• Ex-version available as an option (IECEx-ATEX and EAC zone)

Versatile use in harsh environments

Easy to mount

• Knuckle eyes are available as an option: Ideal force application through self-restoring design
• The load cell can be screw-mounted with an integrated adapter to reduce the height of construction

Swift and convenient integration with your system

Precise weighing

• Complies with the requirements of the D1 accuracy class according to OIML R60 (500 kg, 1 t, 2 t, 5 t maximum capacity)
• Accuracy classes: 0.1 % (100 kg, 200 kg, 10 t, 20 t maximum capacity) and 0.2% (50 kg maximum capacity)
• 6-wire configuration allows connection of long cables

For use with legal-for-trade Class III scales – and many other applications with suspended goods or tanks
