Measurement modules

MX471C-R

Name: MX471C-R
Brand: Anwit
SKU: 4087
Price: 1.00 UAH
Availability: PreOrder

4-channel CAN FD module of the SomatXR family
Supports the following interfaces:
– 4 x CAN
Each channel offers:
– ISO CAN FD or CAN 2.0 A/B
– Logging all bus signals (raw) and decoding on PC
– Max. 250 signals decoding in real-time (catman: 128)
– Max. 128 Signals encoding in real-time (module: 200)
– CCP or XCP-on-CAN (CANape needed)
– Configurable bit rate and switchable internal termination
– Electrically isolated
– Socket: M12 A coded 5-pin
General:
– IP65/IP67 protection class
– Very high vibration (10 g) and shock resistance (75 g)
– 2 x Ethernet 10/100/1000 (PTPv2, M12 X coded 8-pin)
– 2 x Firewire (ODU MINI-SNAP 8-pin)
– Voltage supply: 10…30 V DC, max. 6 W
(ODU MINI-SNAP 4-pin)

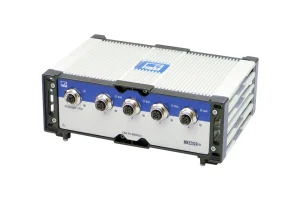

SomatXR MX471C-R: Integrate up to four CAN networks synchronously

Overview

Downloads

The SomatXR MX471C-R CAN bus module allows the simultaneous integration of up to four CAN networks into the SomatXR data acquisition system. This module is the more rugged version of the QuantumX MX471C and is ideal for use in extremely tough conditions, such as vehicle tests in the field and on the test track due to its IP65/IP67 degree of protection and high shock and vibration resistance.

Worldwide unique: The SomatXR MX471C-R integrates any number of CAN nodes into the SomatXR data acquisition system. It enables the synchronous recording of CAN signals and the data provided by analog measurement modules. All the CAN messages can be recorded as a raw-data stream and then decoded in the PC or on the recorder. Alternatively, real-time decoding in the module itself enables the integration of CAN signals into a test bench. The module is compatible with classic CAN, as well as CAN-FD, which is used in modern vehicles to enable the communication of the control units.

Extremely durable

IP65/IP67 degree of protection (dust and water)
Reliable even in the event of continuous vibration loading up to 10 g
Shock-proof up to 75 g
Can be used over a broad temperature range of -40 °C to +80 °C

Suitable for use in harsh applications in the field due to its shock resistance and IP65/IP67 degree of protection

Powerful

Compatible with many protocols such as CAN FD (ISO CAN FD 11898-1:2015) and classic CAN (CAN 2.0 A/B)
A single device for receiving data, changing the data type and compilation, and sending data
High data transfer rates of up to 4 MBit/s
Easy connection via Ethernet incl. gateway function for other MX modules

Powerful integration providing many protocols and high data rates

Versatile integration

Synchronous integration of up to four CAN networks
Optimal integration into the SomatXR/QuantumX family
Four individually configurable, electrically isolated channels
Extensive range of accessories, such as cables, connectors, drivers, and DAQ software

Suitable for demanding tasks due to the simultaneous integration of up to four CAN channels

File	Languages
SomatXR MX471C-R - Data Sheet (B05144)	English
SomatXR - Brochure (S04344)	English
