Аксесуари QuantumX

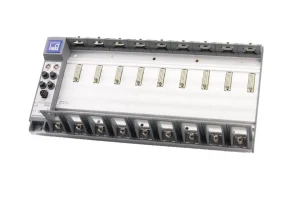

QuantumX Backplane – Standard for a maximum of 9 modules, IP 20 version:
- wall mounted;
- Connection of external modules by FireWire possible;
- Power supply: 24 V DC / max. 5 A (150 W).
Note: package does not include AC/DC power adapter.

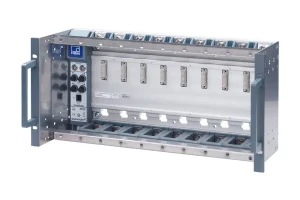

QuantumX Backplane – Rack Version for maximum 9 modules in IP 20
- 19'' rack mounting with handles left and right;
- Connection of external modules by FireWire possible;
- Power supply: 24 V DC / max. 5 A (150 W);
Note: package does not include AC/DC power adapter.

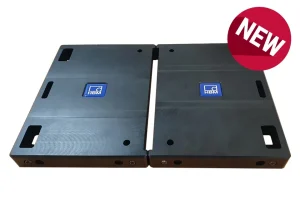

Set for expansion of the QuantumX BPX002 backplane into a desktop housing.

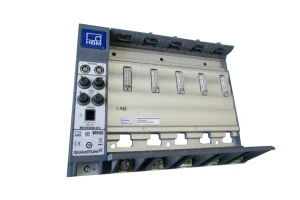

QuantumX Backplane – Standard for a maximum of 5 modules, IP 20 version:
- wall mounted;
- Connection of external modules by FireWire possible;
- Power supply: 11-30 V DC / max. 5 A (90 W).
Note: package does not include AC/DC power adapter.

Set comprising of 2 connecting elements (clips) for QuantumX modules including mounting material.

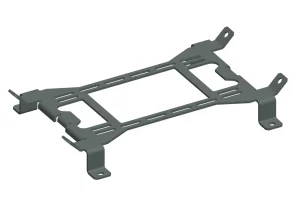

Fitting panel for mounting of QuantumX modules using case clips (1-CASECLIP), lashing strap or cable tie. Basic fastening by 4 screws.

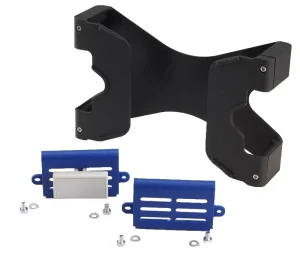

Case protection functioning as stacking aid for QuantumX amplifiers, modules (X-frame).

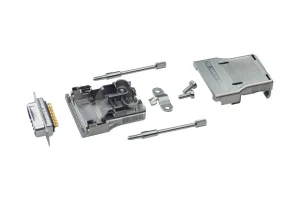

Plug D-SUB-D (15 pin) with housing,
Housing: Plastic metallized with knurled screws

Plug D-SUB-HD (15 pin) with housing,
Housing: Plastic metallized with knurled screws

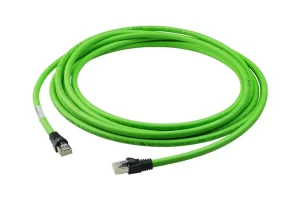

Robust Ethernet patch cable for universal operation of devices (Cat 6A)
Plug type: RJ45 (at both ends)
Cable length: 2 m
Cable diameter: 7.1 mm
Design: Twisted pair
Temperature range: -40 °C to +80 °C
Cable type: AWG 26/7, 4x2x
Shielding: Double shielded
Color: Green

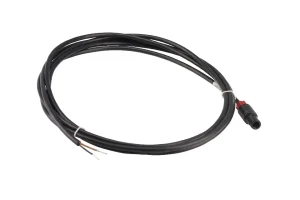

Cable for voltage supply of QuantumX modules; length: 3 m; open strands on one side and ODU plug on the other end.

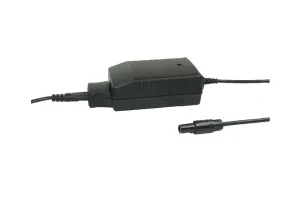

AC-DC power supply unit (24 V, max. 30 W);
Input: 100-240 VAC,
international plugs, 1.5 m cable;
Output: 24 V, 2-wire, 2 m cable with ODU-MEDI plug.

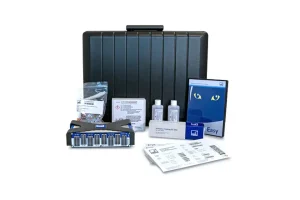

Комплект поставки, включаючи:
16-канальний тензометричний мостовий підсилювач QuantumX MX1615;
Підтримує наступні технології датчиків на всіх каналах:
- Тензорезистор в ¼, ½ і повній мостовій схемі, змінна напруга збудження моста (постійний струм або несуча частота 1200 Гц), внутрішній чвертьмостовий опір (120 або 350 Ом);
- напруга (+/- 10 В);
- термометр опору, опір;
- потенціометр;
- швидкість передачі даних: до макс. 20 кС/с;
- автоматична ідентифікація датчика: TEDS;
Загальний:
- 1 x Ethernet (PTP), 2 x Firewire;
- Напруга живлення: 10...30 В постійного струму, макс. 12 W;
- Заводські дані калібрування відповідно до DIN/ISO 10012, збережені на пристрої (згенерувати сертифікат за допомогою MX Assistent);
- 16 клем, позолочені (1-CON-S1015);
- монтажний комплект (1-WIRING-MATE)
У комплект поставки також входять
- монтажний кейс для тензорезисторів (1-DAK2);
- універсальні тензометричні датчики (1-LY41-1.5/120)
- мініатюрна розетка (1-RF95-1/120ZE)
- паяльні клеми (1-LS7);
- силіконове покриття (1-SG250);
- швидкодіючий клей (1-Z70);
- фіксуюча стрічка (1-KLEBEBAND);
- блок живлення (1-NTX001);
- кабель Ethernet (1-KAB239-2);
- програмне забезпечення catman®Easy від HBM, включаючи технічне обслуговування протягом перших 12 місяців.

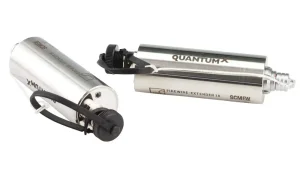

2 In-line elements to extend the FireWire connection up to 30 m between 2 modules;
Additional parts needed: 2 x 1-KAB272-x and Industrial Ethernet cable (M12, CAT5e/6, max. 30 m).
No power transfer - connection with KAB293-5 is not possible!

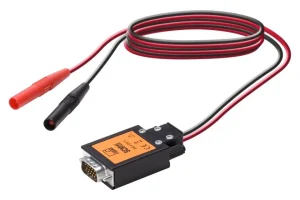

High-voltage signal conditioner for differential measurement of voltages up to 300 V CAT II for QuantumX modules with SubHD-15 socket and full bridge input;
Adapter with fixed 1-m-long measuring leads with 4-mm laboratory plugs.

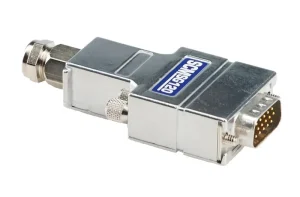

Signal conditioning of strain gage quarter bridge at QuantumX full bridge input.
- Integrated 120 Ohm completion resistor;
- 3-wire configuration;
- socket: soldering points for strain gage;
- TEDS included;
- DSubHD-15 device connection.

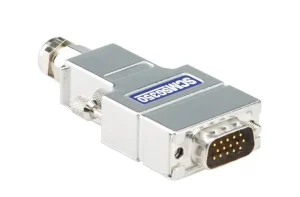

Signal conditioning of strain gage quarter bridge at QuantumX full bridge input.
- Integrated 350 Ohm completion resistor;
- Connection: soldering points for strain gage;
- 3-wire configuration;
- TEDS included;
- Socket: DSubHD-15.

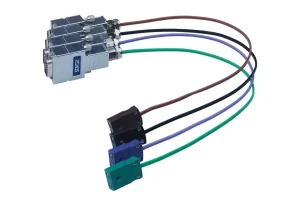

Thermo Mini coupling Type J adapter at QuantumX input with thermocouple support:
- Integrated cold junction (THERMO-MXBOARD);
- Integrated TEDS;
- DSubHD-15 device connection;
- 30 cm compensating line;
- Thermo Mini coupling (black-white).

Plug-Kit Sub-D 15pol. (male) with TEDS chip (1-wire) for storing a sensor data sheet;
Housing: Plastic metallized with knurled screws;
Note: TEDS chip is blank.

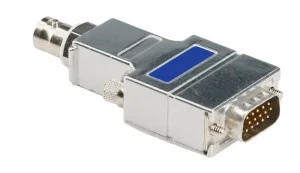

DSubHD to BNC adapter (passive) to connect IEPE sensors or 10 V signals with BNC cable to QuantumX amplilfier; Length: approx. 7.5 cm.

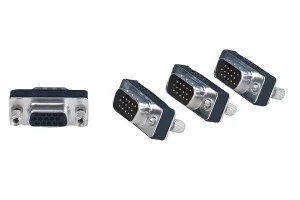

4 x D-SUB HD 15 pin male to female port savers;
protecting the wear and tear for frequent plugging and unplugging. Extends contact durability by min. 500.

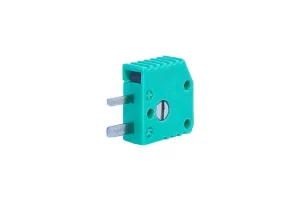

5 mini thermocouple plugs type K with integrated RFID chip for measuring point identification for MX1609 thermocouple amplifiers type K: NiCr-NiAl, green.

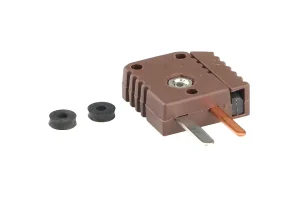

5 mini thermocouple plugs type T with integrated RFID chip for measuring point identification for MX1609 thermocouple amplifiers type T: Cu-CuNi, brown.

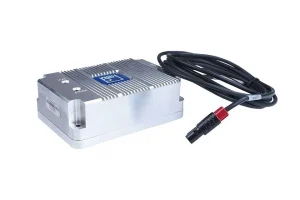

Uninterruptable power supply to buffer power drops of a vehicle battery.
